Item No.: CH200843-6

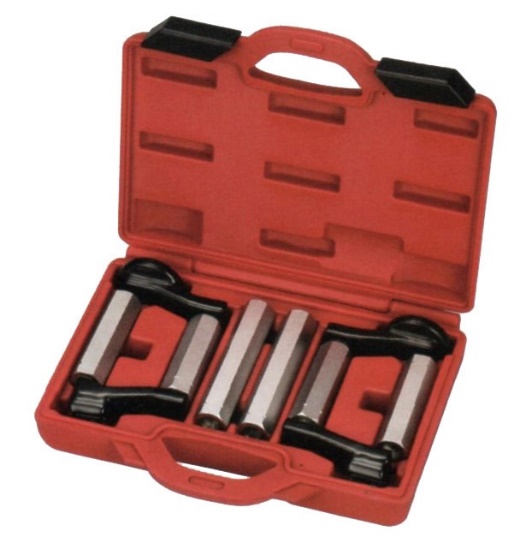

6Pcs Alignment Tool Set

Description:

* The pair of pressure fixtures allows a single technician working alone to adjust and set camber angles.

* Not only quick and easy, but also eliminate the need for additional labor.

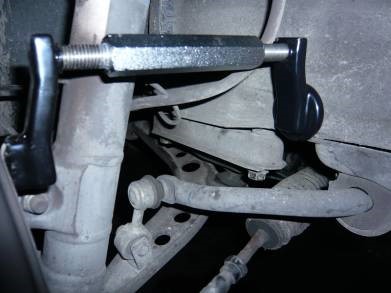

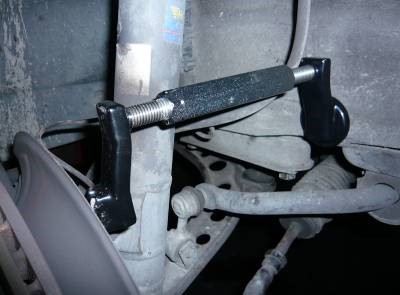

* This tool is placed between the strut or bodywork and the wheel-rim and camber may be adjusted by rotating the hexagonal drive.

Application:

* CH200843-01, hex nut length: 75mmL,spin width:135~175mm, for VW Golf, Jetta, Seat, Toledo,etc.

* CH200843-02, hex nut length: 85mmL, spin width: 155~180mm, for VW Polo from 95’,Seat Cordoba etc.

* CH200843-03, hex nut length: 115mmL, spin width: 175~210mm, for Chrysler Voyager etc.



¡@

¡@


¡@


¡@
