Item No.: CH1308196

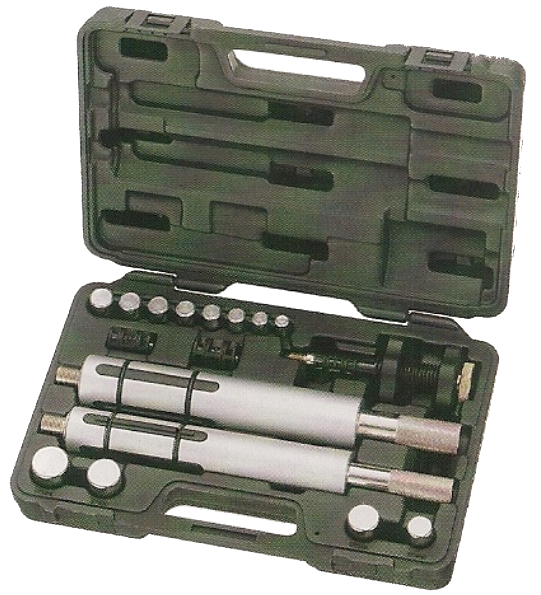

Clutch Aligner Set

Description:

* Universal Clutch Aligner For hub- Ø: 15-28mm

* Because of the parallel expanding technology, it is possible to center the clutch plate to the clutch pressure plate or to the flywheel.

* The clutch aligner kit contains centering sleeves with Ø 12, 14, 15, 16, 17, 18, 19, 20mm

* For trucks with single or double disc clutches (universal)

* The tool allows the correct alignment of single or double disc clutches of trucks and tractors to the engine.

* Mandrel No.1 is applicable on interior clutch hub- Ø from 36-45mm.

* Mandrel No.2 is applicable on interior clutch hub- Ø 42-52mm inside.

* The clutch aligner kit contains centering sleeves with Ø 20, 25, 27, 30mm.

¡@

¡@

¡@

¡@

¡@

¡@

¡@
