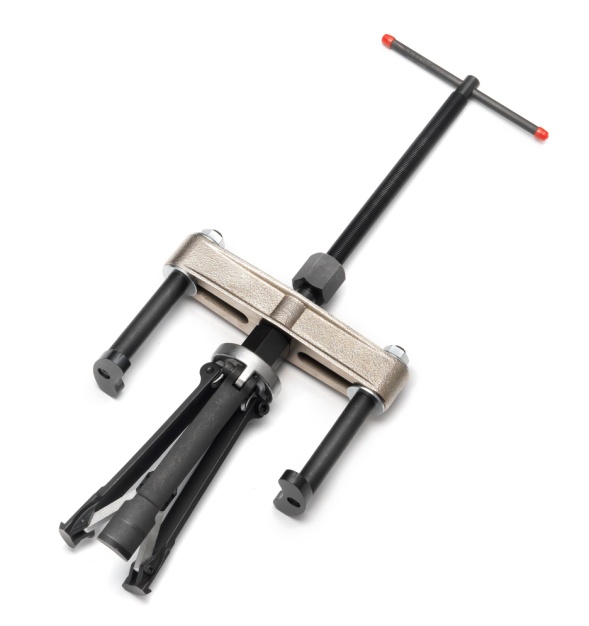

Cylinder liners Extractor Tool
¡@



Item No.:CH1308187

Cylinder liners Extractor Tool

Description:

* Cylinder liner puller complete with support brace.

* Wet heavy-vehicle (e.g. Mercedes Benz, MAN) cylinder liners, automobile and stationary-engine liners, and other parts may be extracted using this puller.

Operation:

* The spindle of the counter-support brace is screwed into the clamping nut of the puller, and the puller inserted into the liner.

* The counter-support brace is placed on to the cylinder block. * Due to the newly-developed spreading system, when the spindle is turned, all three jaws spread quickly and without difficulty, until they are firmly seated beneath the edge of the liner.

* Then the nut of the counter-support brace is tightened.

* Suitable for cylinder liner Ø 60 - 160 mm

¡@

¡@
¡@

¡@

¡@
