Universal Clutch Alignment Tool Set
¡@

¡@

Item No.: CH1214202

Universal Clutch Alignment Tool Set

Description:

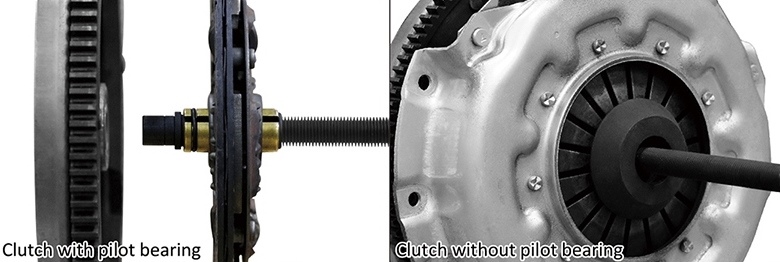

* Align the clutch disc either relative to the clutch pressure plate or via the pilot bearing relatvie to the flywheel.

* For single/two disc clutches (Clutch hub dia.15~26mm)

* For passenger cars and light commercial vehciles.

* For vehicles with/without pilot bearings.

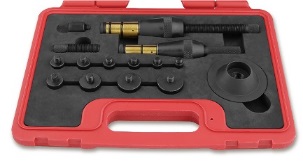

Content:

* 2pcs mandrel: dia.15~19mm & dia.20~26mm

* 3pcs spindles: 55mmL,100mmL,150mmL

* 2pcs clutch disc aligning adaptor: dia. 19~30mm, dia.:26~35mm,

* 1pc clutch plate aligning adaptor: dia.:29~69mm

* 1pc pilot bearing extension adaptor: 20mmL

* 10pcs pilot bearing adaptor: dia.10, 12, 14, 15, 16, 17, 19, 25, 27,30mm

Universal Clutch Alignment Tool Set

¡@

¡@

¡@

¡@

¡@

¡@
