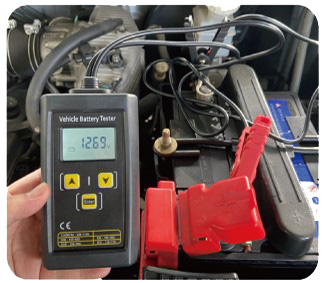

Vehicle Battery Tester

Item No.: CH1213215

Vehicle Battery Tester

Description

* With SAE/DIN/EN/IEC/CA standard

* Engine starting voltage test

* Charging voltage test

* CCA level bar indication

* LCD with background light

* Used on 12V normal Lead-acid battery (lead calcium alloy)

  -sealed maintenance free battery

  -maintenance free battery

  -standard type battery

-EFB (Enhanced flooded cell battery

-AGM(absorbent glass mat battery)

* Not for Lithium Iron Battery or New type battery

Application:

Available set up range of cold cranking ampere

SAE: 200-950

DIN:105-600

EN: 185-900

IEC:125-710

CA(MCA): 250-1190

Range of cold

Voltage: 0.01V

CCA: 1CCA

Accuracy

Voltage:+/- 0.05V

Reverse polarity protection

Reverse protection less than 20V DC
