Auto Circuit Tracer

¡@

¡@

¡@

Auto Circuit Tracer

Auto Circuit Tracer

¡@

¡@

CH1213113

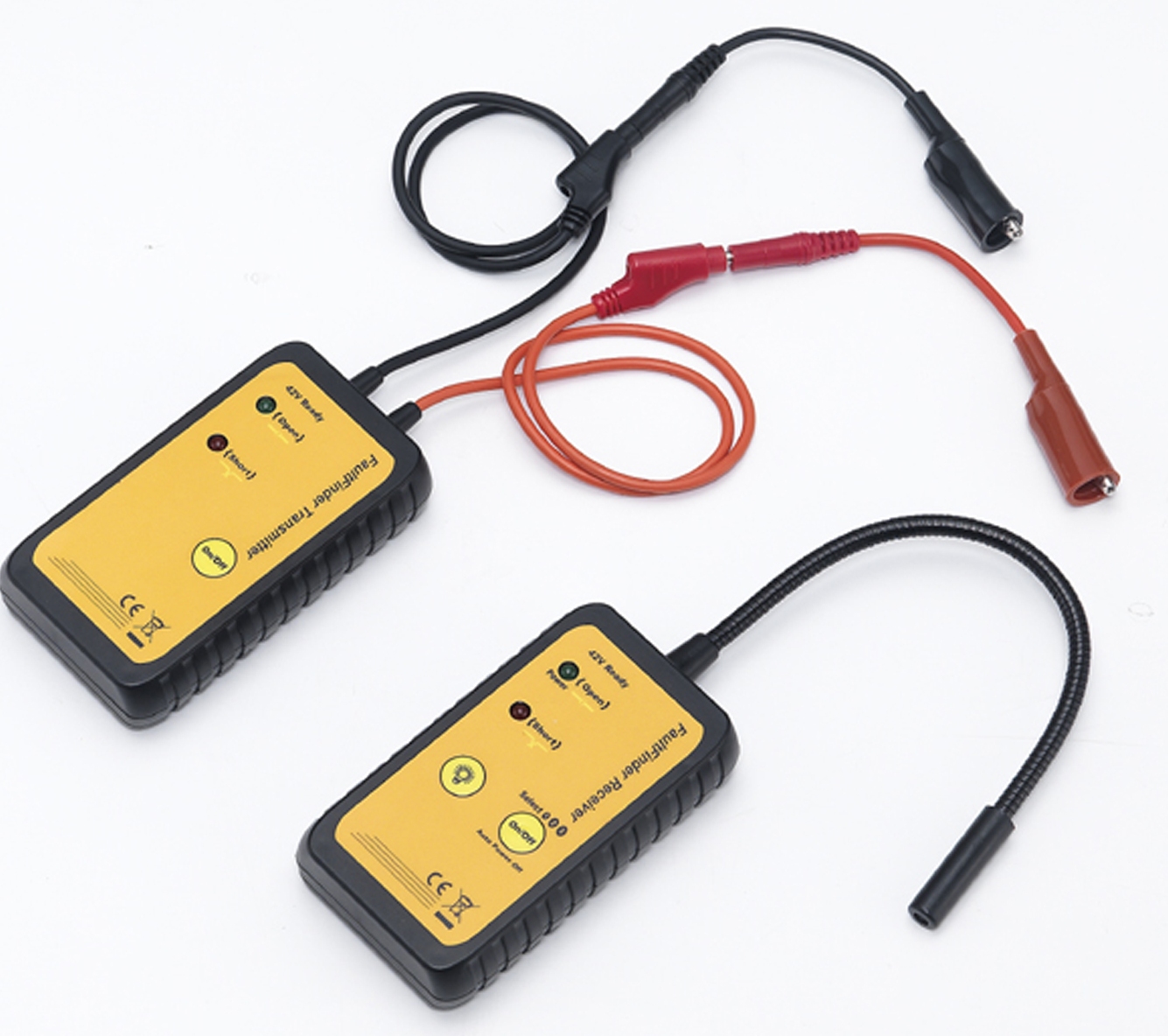

Auto Circuit Tracer



Description:

* The main function for the equipment is to searching and diagnosing the short / open circuit of vehicle¡¦s circuit connection, another function is to identify the wire connection from whole vehicle¡¦s circuit connection.
* Suitable for all DC circuits up to 42V

* Power source: 9V battery x2 required

* Indicators: Green LED for power On and Open circuits.

Red LED for short circuits.

* Sensitivity: three user selectable sensitivity levels. (Low , Medium, High)

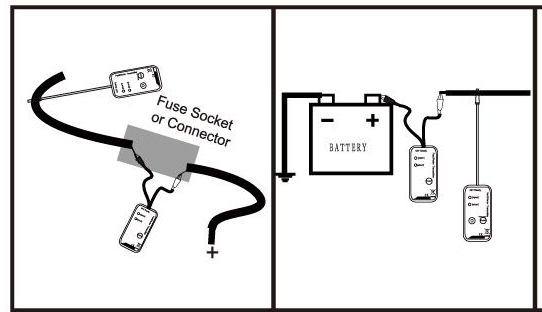

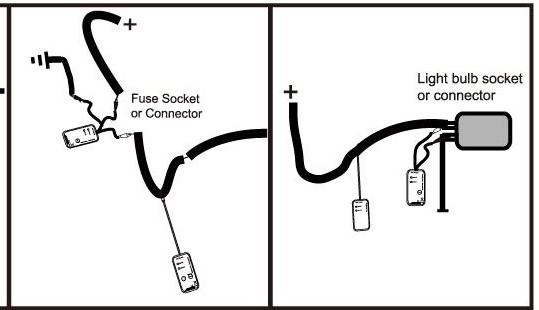

* Connection reference:

¡@

¡@



¡@

¡@

¡@

¡@

¡@

¡@

¡@
