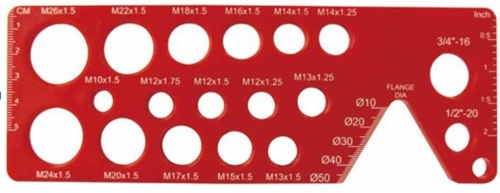

Handy Pitch Gauge


Item No.:CH120861

Handy Pitch Gauge

Description:

* 3-in-1 functions: diameter pitch length.

* Suitable for male parallel bolts, studs and screws.

* Includes most common sizes in metrics and SAE.

* Convenient tool avoids incorrect bolt, stud or screw installation.

* Material: ABS

Instruction:

Hose Removal Pliers








ˇ@

ˇ@


Fig. 1   For checking threads

- Find a hole with a similar size to the object
  (a bolt, stud or screw to be checked) (Fig 1).

- Connect the object to the hole to see if the hole matches the object.

- Note: When the object threads match holesˇ¦ threads, the object can be rotated smoothly. If any un-smoothness occurs, it is an indication that the threads do not match. Connection with force may cause holesˇ¦ threads damaged.

Hose Removal Pliers

 Fig 2: For checking diameter

- Position the object against the innermost part of the
  V-shape groove.

- Find the point where the edges of the object and the gauge touch each other (see the arrows on Fig 2), and read the marking.

Hose Removal Pliers

Fig 3: For checking length

- Place the object on both sides of the gauge
   (SAE on the right and metrics on the left).

- One end of the object should align the upper line
    of the gauge (Fig. 3 and 4) and read the marking.
