Item No.: CH090958-A

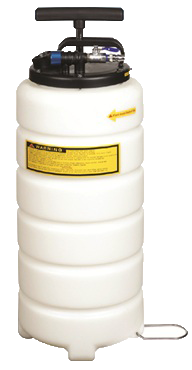

Pneumatic/ Manual Operation Fluid Extractor PAT.

Description:

* Capacity: 15L. (4 Gal.)

* Two air outlet with check valve design on handle for easy & quick to release air pressure from the extractor.

* Easy to operate suitable for engine oil, gear oil, brake fluid, coolant, water..etc.

* Provide with new decompression valve for easy to release the negative pressure.

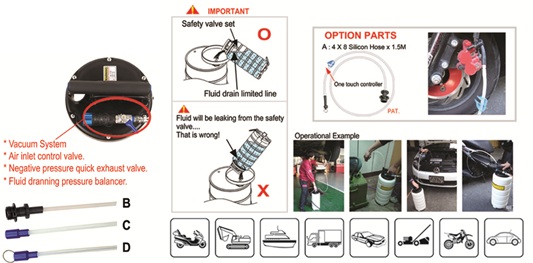

* Fixing valve & safety cup for automatic cut-off extracting.

* Non-spark, no-power fluid extractor.

* Include 3kinds nylon tubes can be extracting any non-corrosive fluid.

* Option parts: “A” 1.5 meter silicon hose with one touch controller & universal rubber apdater, can fits to most type brake fitting.

Specification:

* Air inlet: 1/4”
*Avg. air cons.: 2cfm
*Working pressure range: 40-170psi (2.8-11.7bar / 0.28-1.17Mpa)
*Fluid temperature range: 1 degree-95 degree C (35-200 degree F)

Standard accessories:

B: 7.8 x 9.8 Nylon hose x 1M
C: 5.3 x 6.7 Nylon hose x 1M
D: 4 x 6 Nylon hose x 1M



¡@ ¡@
¡@ ¡@

¡@

¡@


¡@
