Pump Injector Adjustor



Item No.:CH081248

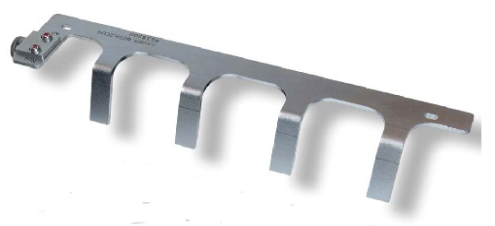

Pump Injector Adjustor

Description:

* Adjustment gauge for testing the installation position or to adjust the pump/nozzle unit during assembly. The adjusting device (see picture) allows the use of the adjustment gauge on pump/nozzle units with new and /or old solenoid valve nuts. The gauge sizes are the maximum settings and can be changed accordingly by using the feeler gauge.

* Adjustment gauge for pump/nozzle unit size 1 , 4 cylinder

* Application Engines: Audi and VW pump/nozzle engines

* Attention: The two allen screws of the adjustment unit are not be unfastened.

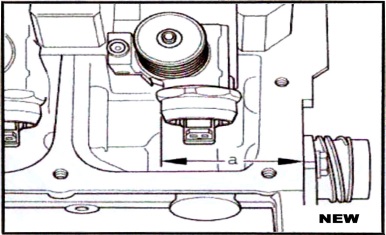

* Picture solenoid valve nut:

* Other tools for the pump/nozzle engine:

  -XZN nut for the pump/nozzle unit

  -Puller for the pump/nozzle unit

* Dimensions a 4. cylinder:



Old

New

1. cyl.

332,2 ± 0,8 mm

333,0 ± 0,8 mm

2. cyl.

244,2 ± 0,8 mm

245,0 ± 0,8 mm

3. cyl.

152,8 ± 0,8 mm

153,6 ± 0,8 mm

4. cyl.

64,8 ± 0,8 mm

65,6 ± 0,8 mm
